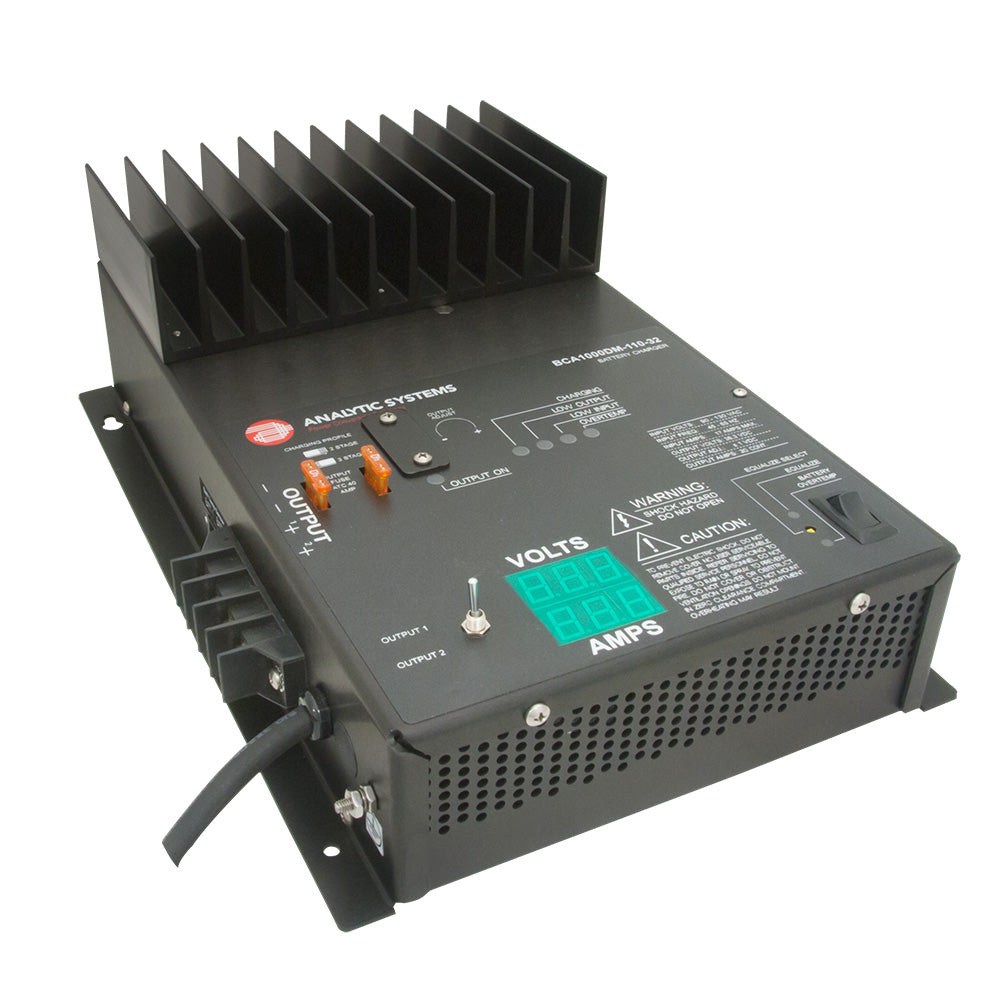

Analytic Systems AC Charger 2-Bank 40A, 24V Out, 110VAC In CSA/UL [BCA1000-110-24]

Availability In stock

SKU TO-104279

Product Type Battery Chargers

Brand Analytic Systems

$1,949.00

Quantity:

Subtotal: $1,949.00

Add to Wish List

Description
Shipping + Returns Policy

AC Charger 2-Bank 40A, 24V Out, 110VAC In CSA/UL

This BCA1000 COTS AC-source battery charger is designed to charge a battery at 24VDC.

Internally, the single-board design incorporates a time-tested switch mode technology for unmatched efficiency and ultra-quiet operation. Additional stages of filtering on the outputs reduce conducted and radiated EMI noise to very low levels.

This unit features a user-selectable 2-stage or 3-stage charging profile, and the output voltage adjusts for optimum charging. Additionally, the equalization mode and voltage temperature compensation increase the lifetime of expensive battery systems.

Built for rugged duty, this unit is constructed from heavy-duty anodized extruded and billet machined aluminum with O-ring seals and all stainless-steel fasteners.

Reliability features of this product line include LED status indicators, over-temperature shutdown, current limiting, reverse polarity battery connection protection, output short circuit shutdown with automatic recovery, and output over-voltage protection.

Features:

Adjustable charging voltage
Single or two-bank charging
Ultra-quiet low EMI operation
Bright LED indicators
Equalize mode functionality
Rugged and reliable

Specifications:

Input:

Nominal Voltage: 110 VAC
Actual Voltage: 90-133 VAC
Frequency: 45-65
Input Amps (Max): 13 A
Input Fuse (Slow blow): MDA-20

Output:

Nominal Voltage: 24 VDC
Float Voltage: 27.2 VDC
Absorption Voltage: 28.8 VDC
Charging Amps: 40 A
Output Fuses (parallel): 2x ATC-30
Absorption to Float Switch: 6 Amps
Output Overvoltage Protection: 32 ± 1V
Temperature Compensation: -60mV/°C
Equalize Voltage: 31.0 VDC
Recommended Battery Size (Amp-hours): 160-240
Supported no. of Battery Banks: Charges up to two connected battery banks
Output Volt. Adjust: +/- 1.0 V
Charging Stages (Selectable): 2 Stage (CC-Float) or 3 Stage (CC-Absorption-Float), User-selectable
Output Ripple & Noise: <50 mV
Transient Response: <1V for 50% Surge
Regulation (Line & Load): < +/- 0.5%
Duty Cycle: Continuous (100% for 24 hours per day)
Efficiency: >75% @ Maximum Output

Mechanical:

Length: 14.5 in. / 36.8 cm
Width: 9.9 in. / 25.1 cm
Height: 5.0 in. / 12.7 cm
Clearance: 1.0 in. / 2.5 cm all around
Weight: 12.0 lb. / 5.5 kg (approximate)
Material and Finish: Black anodized marine-grade aluminum
Fasteners: 18-8 stainless steel
Input Connection: 3 m / 9.8ft 3xAWG14 power cord with NEMA 5-15 or CEE 7/VII compatible plug
Output Connection: Molex 4-pin BEAU Terminal Strip
Battery Temperature Sensor Connection: RJ45 ‘telephone jack’ connector

Environmental & Safety:

Operating Temperature: -25°C to +40°C @ maximum output. Derate linearly 2.5% per °C from +40°C
Storage Temperature: -40°C to +100°C
Humidity: 0 - 95% relative humidity (non-condensing) with standard conformal coating
Isolation: Input-Output & Input-Case: 1500 VDC; Output-Case: 500 VDC (1500 VDC @ 48 V Out)
Cooling: Two interior thermostatic cooling fans
Audible Noise: 0 dB @ 1 meter when the fan operating
Typical Service Life: > 10 years (87,600 hrs.)
Warranty: Three Years of Parts and Labor
Safety: Designed to meet UL458 & CSA 22.2.107.1

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

Charging Banks: 2
Box Dimensions: 7"H x 12"W x 16"L WT: 12.6 lbs
