Digital Yacht LANLink NMEA 0183 To Ethernet Gateway [ZDIGLANLINK]

In stock
TO-103374
Accessories
Digital Yacht
$314.00
$314.00

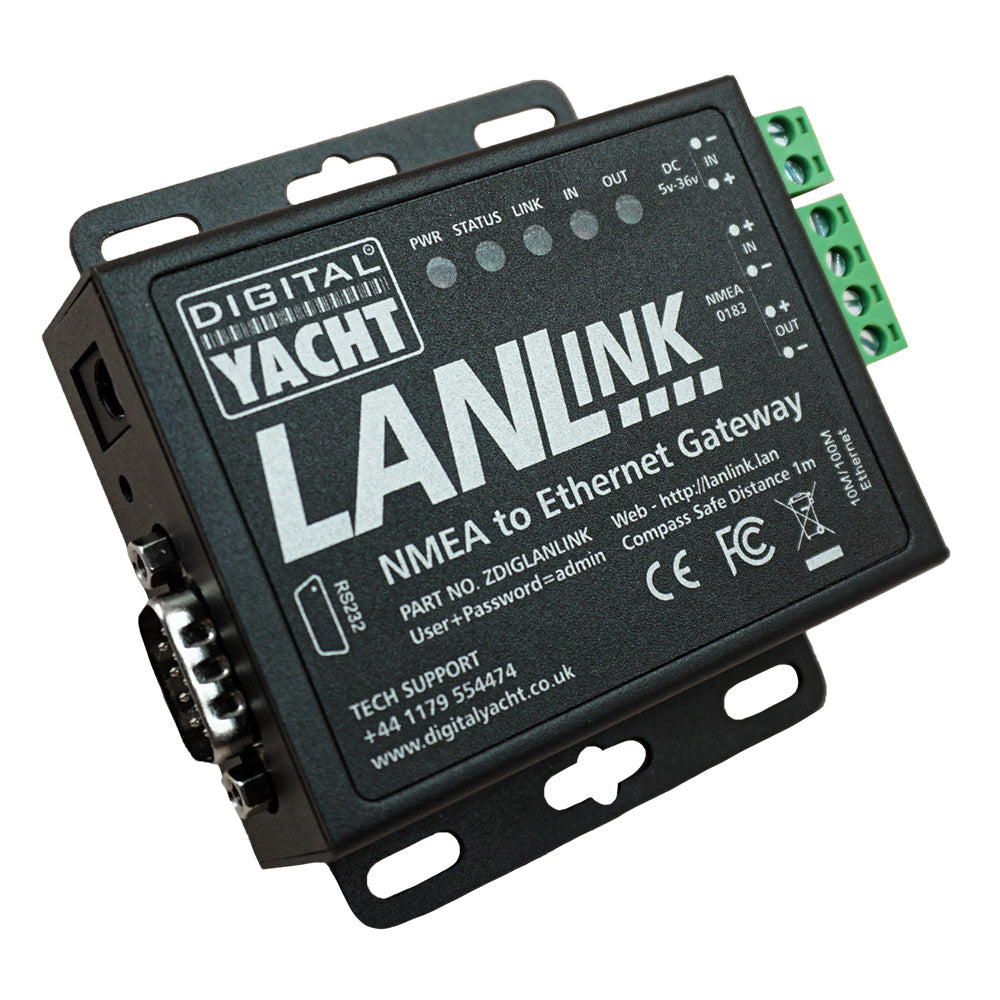

LANLink NMEA 0183 To Ethernet Gateway

More and more boats now have a wireless router fitted or utilize services like Digital Yacht 4G Connect for internet connectivity. LANLink is an NMEA to ethernet gateway that enables the boat’s NMEA data to integrate into the router network -allowing connected devices and apps to take advantage of the data.

LANLinkis available in two versions suitable for NMEA 0183 and NMEA 2000 respectively. It features an easy-to-use web interface allowing any device with a browser to configure NMEA baud rates and IP/Port information.

It can support multiple TCP/IP connections and is bi-directional. Once connected to the onboard network via a simple CAT 5/6 patch cable, users can set apps like TZ iBoat, iNavX, NavLink, iSailor, Imray, Weather 4D, etc., by simply entering the IP address and port for streaming NMEA data.

Features:

  • NMEA 0183 to ethernet gateway version
  • 12/24v DC low power operation
  • Connects to router or devices via simple RJ45 Cat 5/6 patch cable connection
  • The web user interface for easy setup from the connected device via the browser
  • TCP/IP or UDP connection modes –support for up to 5 connected devices with TCP/IP
  • Bi-Directional
  • The NMEA 2000 variant can offer raw mode with encapsulated PGNs or conversion mode (for apps) supporting AIS, instruments, and GPS
  • RS232 port for PC apps too
  • Status indicators for power, data in-out, network link, and server status

Set-Up:

  • Easy menu-driven web UI accessible via web browser on a client device with no complicated software to install for setup
  • Configure NMEA data for 4800 or 38400 baud and set mode (TCP/IP or UDP) and port
  • Set up with fixed or dynamic IP address
  • Status page for system diagnostics

Specifications:

  • Power: 10-35V DC (Consumption approx. 50mA at 12V DC)
  • Network Port: Ethernet RJ45 10/100MB
  • IP Mode: Static or DHCP
  • Operating Mode *TCP/IP or UDP; Support for up to 5 connected devices in TCP/IP mode; *Recommended mode of operation
  • NMEA Input: Configurable 4800 or 38400 baud (NMEA 0183)
  • NMEA 2000 option via iKonvertgateway
  • Operating temp: -25 to +70 degrees C
  • LED Indicators: Power -Status -Link -Data In -Data Out
  • Options: RS232 connectivity (non-concurrent with NMEA)
  • Dimensions (W x H): 95mm x 86mm
